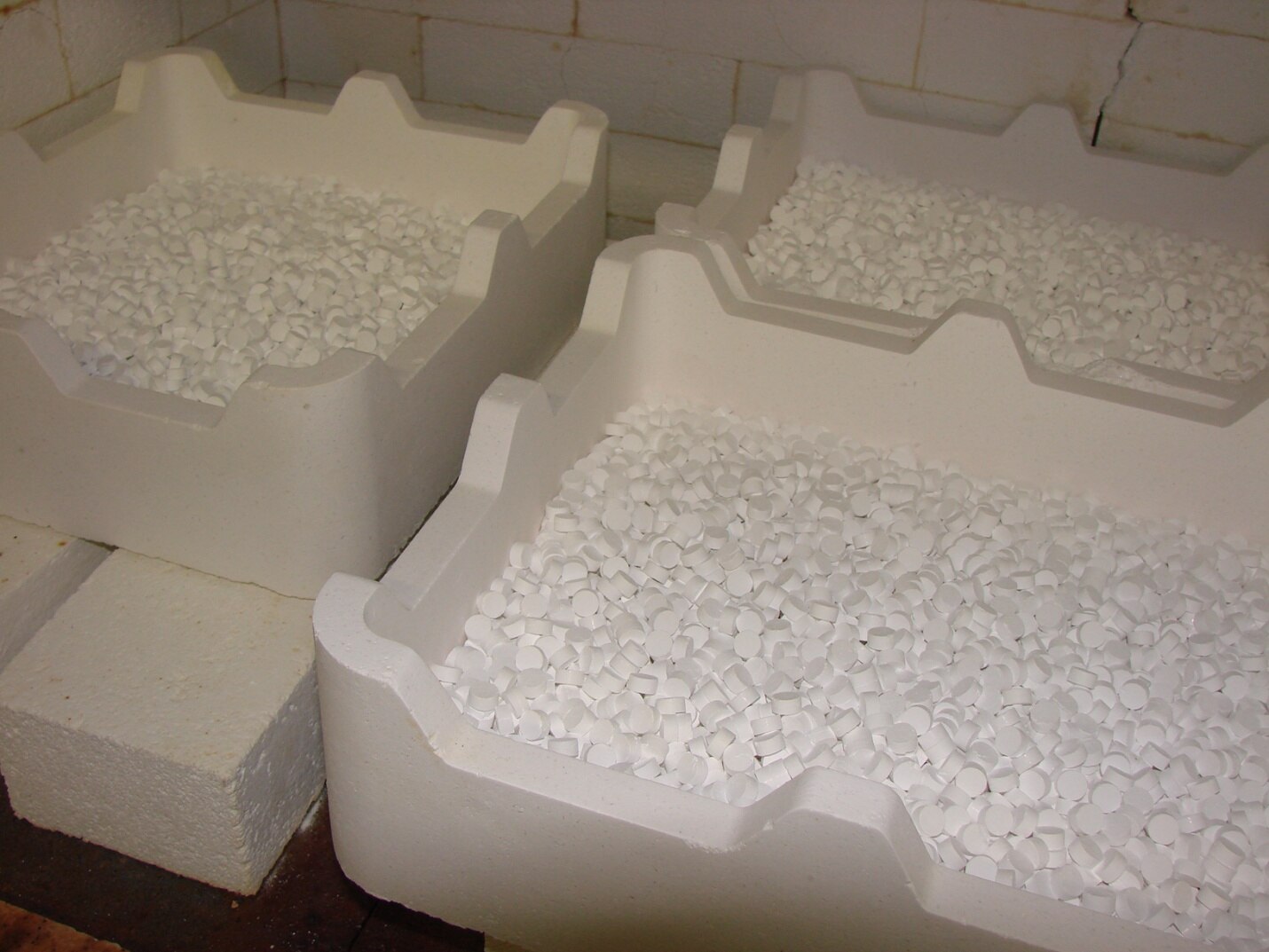

A layer of a batch of Tantalum Oxide tablets in a high temperature furnace
Tantalum Pentoxide
Ta2O5
- Catalog Number
- TA-5160
- CAS Number
- 1314-61-0
- Purity
- 99.99
- Formula Mass
- 441.89 g/mol
- Physical Form
- Available as a powder or tablets (White & Black - High Laser Damage Threshold).
Product Description
- Market Focus: Thin Film Coatings
- Categories: Oxides
Additional Properties & Information
| Typical Purity | 99.99 |
|---|---|
| Appearance | Available as a powder or tablets (White & Black - High Laser Damage Threshold). |
| Density | 8.2 g/cm³ |
| Formula Mass | 441.89 g/mol |
| Melting Point | 1,872°C |
Product Specifications
| Formula Mass | 441.89 g/mol |
|---|---|
| Purity | 99.99 |
| Density | 8.2 g/cm³ |
| Melting Point | 1,872°C |
| Refractive Index | 2.1 at 500nm |
| Transmission Range | 350nm - 8µm |
| Evaporation Temperature | 1,950ºC |
| Evaporation Source | Tantalum or graphite liner with electron-beam evaporation. 0.5nm/sec is a typical deposition rate for good crystallinity at a 300°C substrate temperature. As with all oxides that lose oxygen during the heat-up step, preconditioning is to be recommended. This requires a slow sweep of the e-beam over the tablets so that melting and loss of oxygen is controlled. |
| Available as Tablet | Yes |
Identifiers
| Formula | Ta2O5 |
|---|---|
| CAS Number | 1314-61-0 |
| EC / List Number | 215-238-2 |
Safety Information
Applications
A high index coating material, with transmission from the near ultra-violet to the infrared, (8um). Due to its refractive index being < 2 it is well suited for HL multilayer coatings in conjunction with silicon dioxide for laser applications. This oxide also finds applications in electronics Special mixtures containing tantalum oxide can be custom synthesized.
