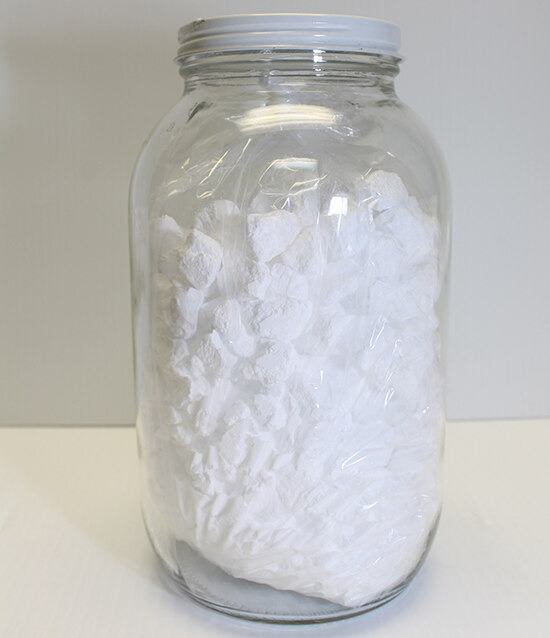

1kg of Gadolinium Fluoride granules in a jar.
Gadolinium Fluoride
GdF3
- Catalog Number
- GA-1920
- CAS Number
- 13765-26-9
- Purity
- 99.9 - 99.99
- Formula Mass
- 214.25 g/mol
- Physical Form
- Available as a powder or as granules.
Product Description
Gadolinium Fluoride is available as >99.9 pure (metals basis) powder or granules in batch quantities for use in stiochiometrically (fluorine compensated) controlled high quality vacuum evaported thin-film coatings.
- Market Focus: Thin Film Coatings
- Categories: Fluorides, Halides, High Purity Salts
- Synonyms: Gadolinium(III) Fluoride; Gadolinium Trifluoride
Additional Properties & Information
| Typical Purity | 99.9 - 99.99 |
|---|---|
| Appearance | Available as a powder or as granules. |
| Density | 7.0 g/cm³ |
| Formula Mass | 214.25 g/mol |
| Melting Point | 1,231°C |
Product Specifications
| Formula Mass | 214.25 g/mol |
|---|---|
| Purity | 99.9 - 99.99 |
| Density | 7.0 g/cm³ |
| Melting Point | 1,231°C |
| Refractive Index | 1.58 at 500nm |
| Transmission Range | 200nm - 12µm |
| Evaporation Temperature | 1,000 - 1,200ºC |
| Evaporation Source | e-beam, Mo, W |
| Available as Granule | Yes |
Identifiers
| Formula | GdF3 |
|---|---|
| CAS Number | 13765-26-9 |
| EC / List Number | 237-369-4 |
